# A tour of bggpipe

Seven pages in one local app — Pipeline, Photos, Titles, Review, Queue, Library, and Help. Every screenshot below is the real app on the author's real shelves, and the end product is public: [the author's BGG collection](https://boardgamegeek.com/collection/user/ewagoner) is what this pipeline built. (Back to the [README](../README.md) · how to use it all: the [user's guide](guide.md).)

**The Pipeline page** — every stage is a card with live counts and a Run button; blockers (missing token, stub-data lock) surface as banners, not surprises. Here: the settled state after a full run — 136 titles read, 115 matched, 62 added.

![Pipeline dashboard: six stage cards with live counts and Run buttons, showing a completed pipeline — 136 titles extracted, 115 resolved, 62 games added, 136 in the library](screenshots/01.png)

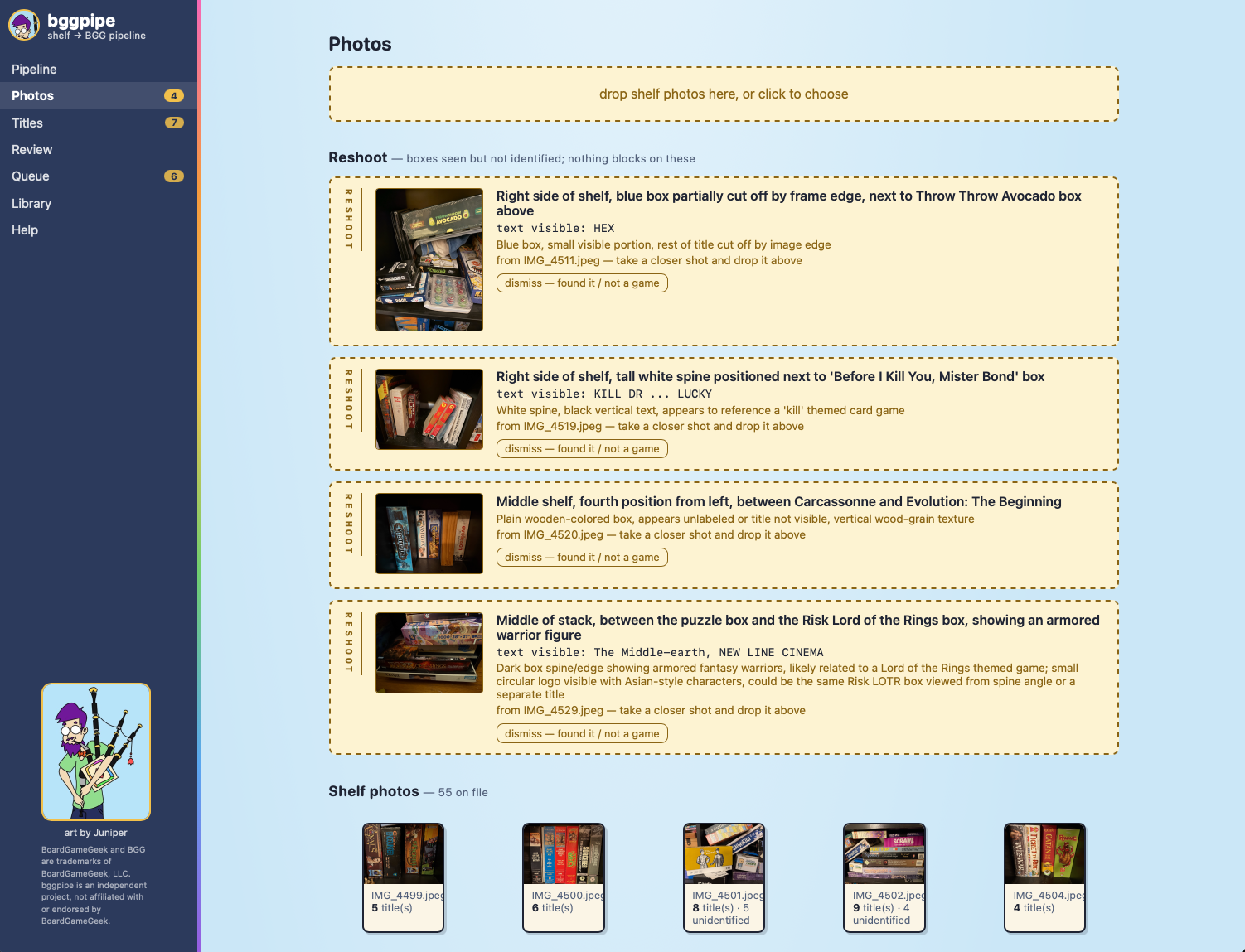

**Photos** — drag shelf photos in; boxes the vision model saw but couldn't read become illustrated reshoot tickets with shelf directions a human can follow.

![Photos page: drag-and-drop upload zone, reshoot tickets with photo thumbnails and shelf-location descriptions, and the gallery of all shelf photos with per-photo title counts](screenshots/02.png)

**Titles** — every read off the shelves, alphabetized with status and source photos. This is the proofreading checkpoint: edit misreads, split multi-copy lines, remove non-games.

![Titles page: 123 extracted titles with AUTO / AWAITING BGG status chips, source photo links, edit and split-into-copies actions, and a shaky-reads filter](screenshots/03.png)

**Review** — keyboard-first decisions on ambiguous matches. Each card shows the shelf photo beside the candidates (with rank, owner counts, and a view-on-BGG link per candidate), plus hand-steered re-searches of BGG or RPGGeek when the automatic search can't reach the right database. Here: is that box base Agricola or the Revised Edition?

![Review page with live match ballots: Agricola showing two candidate editions with thumbnails, ranks and owner counts, and unmatched titles offering manual id entry and search BGG / search RPGGeek buttons](screenshots/11-review-matches.png)

**The editions pass** — after matches are settled, an optional pass picks which *printing* each copy is, scored against the cues read off the box. Skippable per game, and never blocks uploads. Here: five English Catan editions to choose between.

![Editions review pass: Castle Panic and Catan cards, each listing that game's published editions with years, publishers and cue scores, plus can't-tell / list-every-printing / wrong-game actions](screenshots/12-edition-ballots.png)

**Queue** — exactly what upload will do before it does it, and a permanent log of every attempt ever made. Here: six adds and one version update, pending.

![Upload queue: six pending collection adds with BGG ids and source photos, one pending version update with its collection id, and the empty upload log](screenshots/13-queue-pending.png)

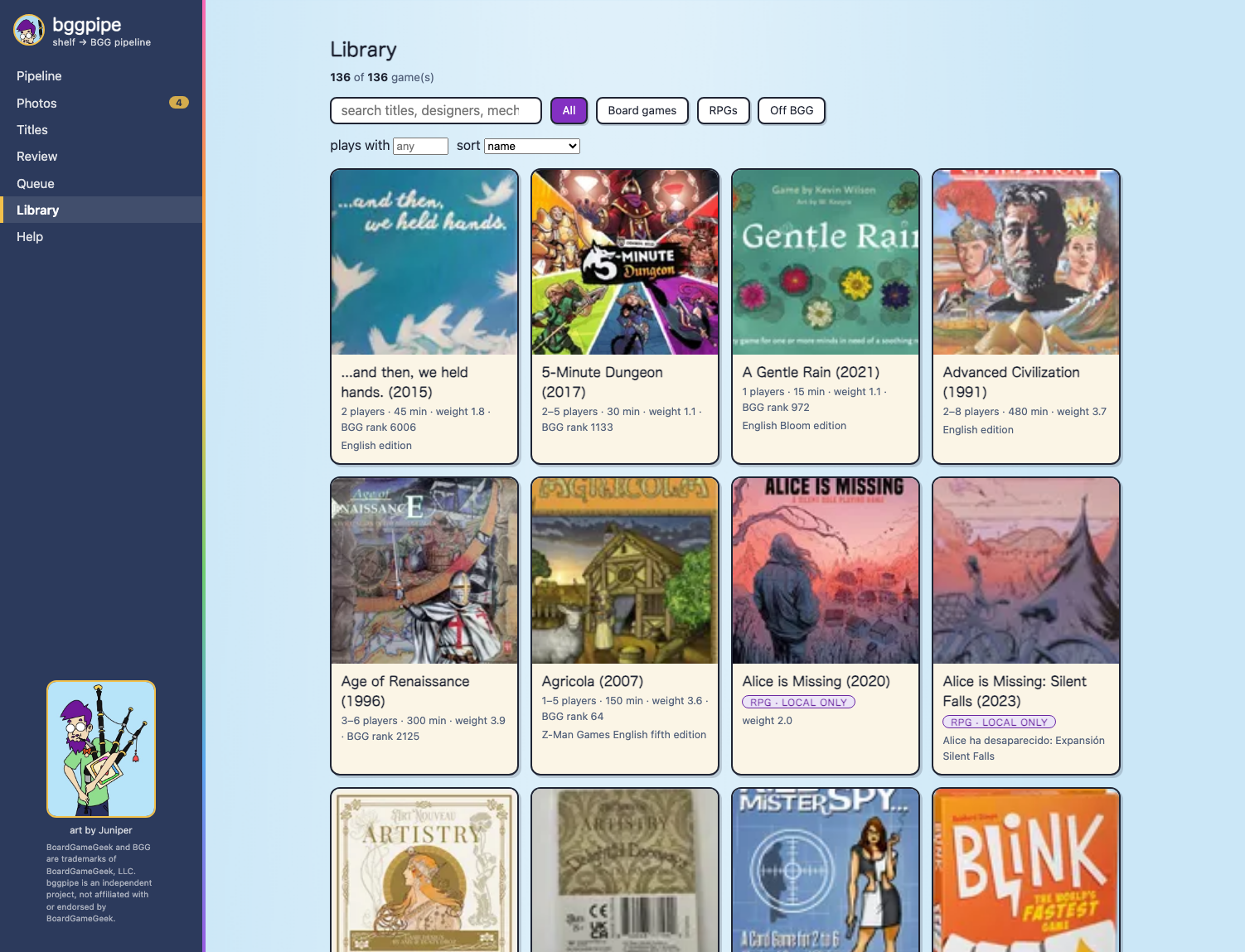

**Library** — the enriched collection: searchable across titles, designers and mechanics, filterable by player count, sortable by rank/weight/year/time. Every card opens a detail page joining BGG's data with your own shelf photos; off-BGG games take hand-written facts and a cover photo there.

![Library page filled with 136 games as art cards — search, kind filters, player-count filter and sort controls above; RPG entries carry local-only chips](screenshots/06.png)

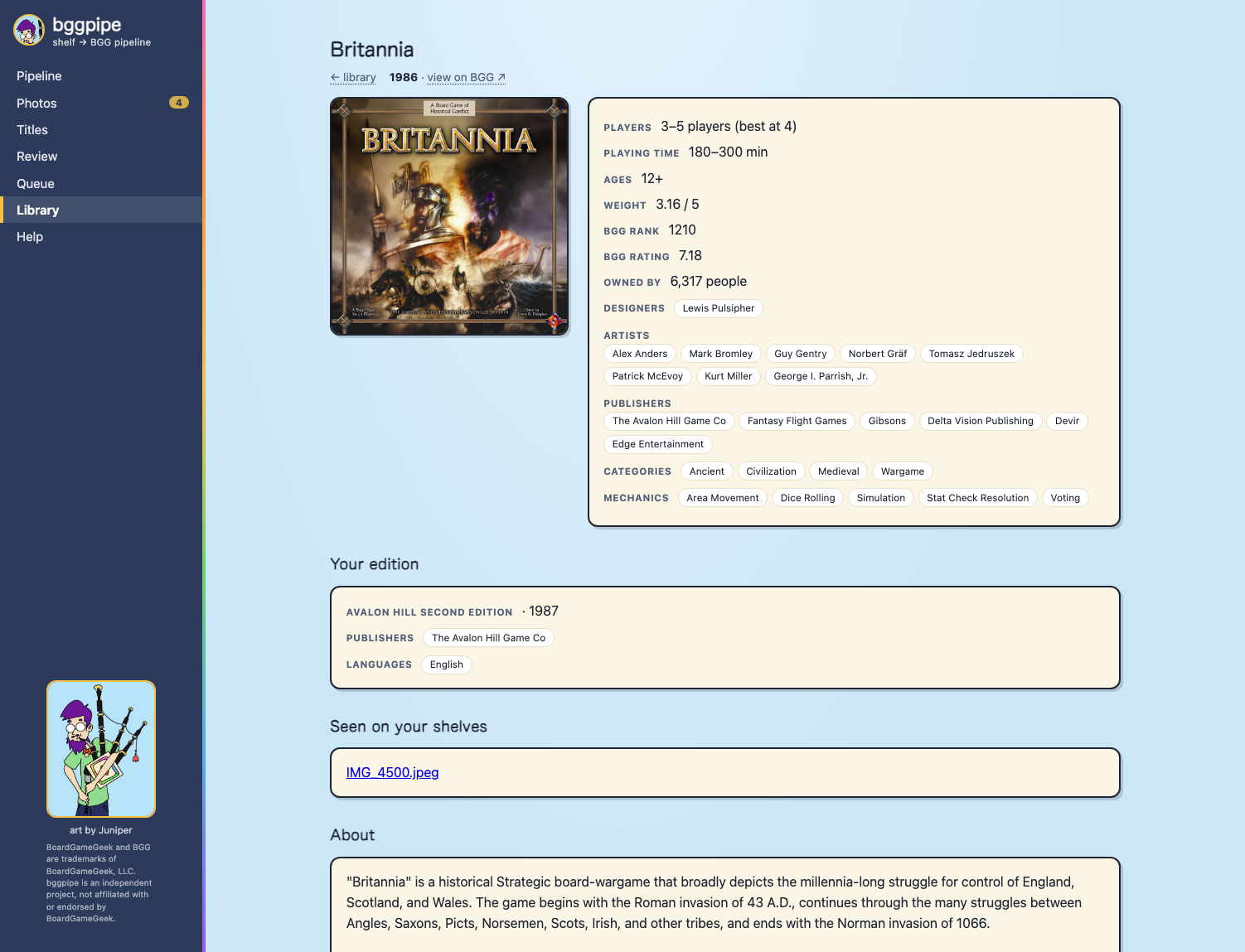

**A game's detail page** — BGG's stats, chips, and description joined with what only the pipeline knows: *your* edition, and the shelf photo it was read from.

![Game detail page for Britannia: box art beside player counts, playing time, weight, rank, designers and mechanics as chips, with a Your Edition card naming the owned printing](screenshots/10-game-detail.png)

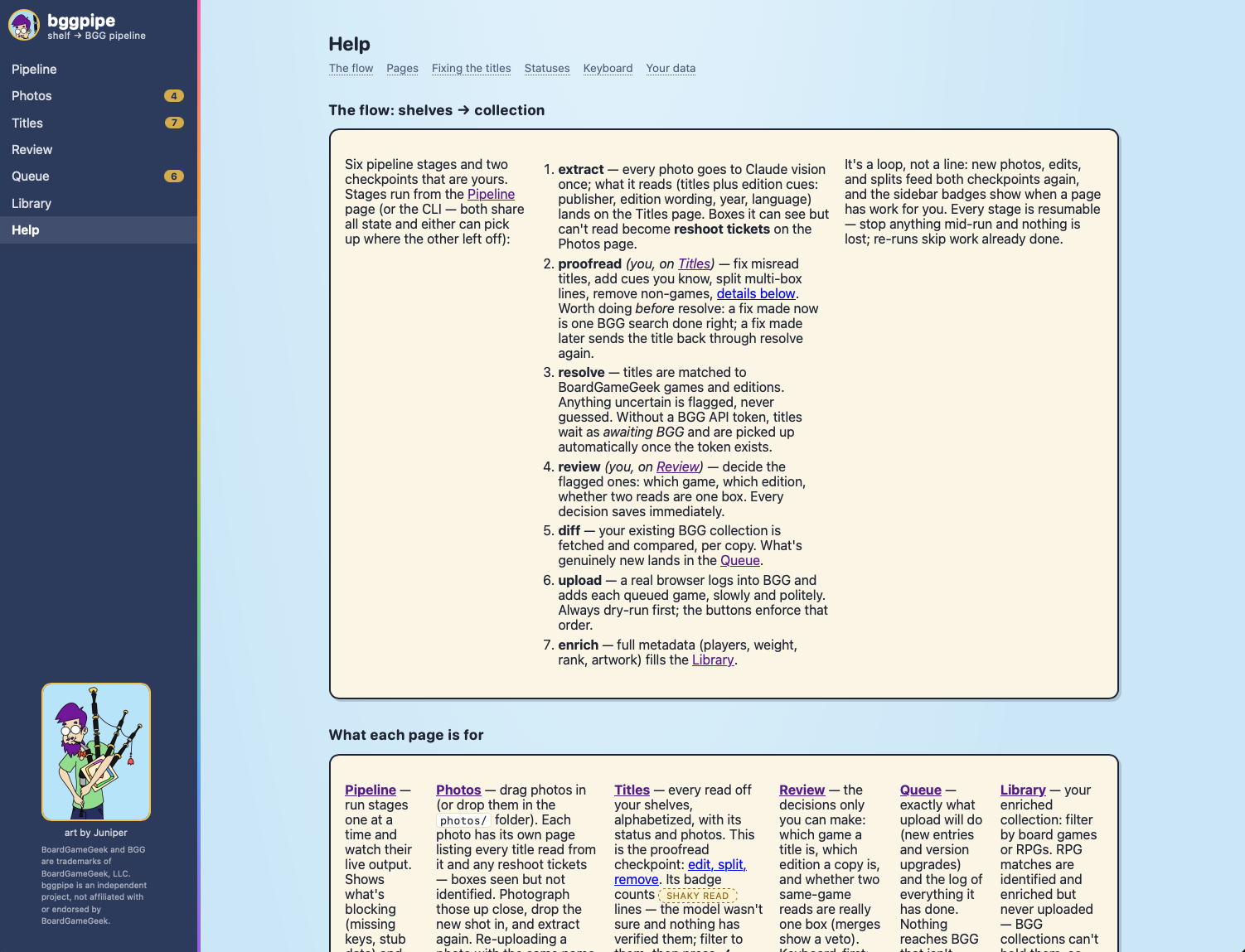

**Help** — the whole flow, every page, every status, and every keyboard shortcut, documented in-app.

![Help page documenting the shelves-to-collection flow, what each page is for, and the proofreading and review checkpoints](screenshots/07.png)

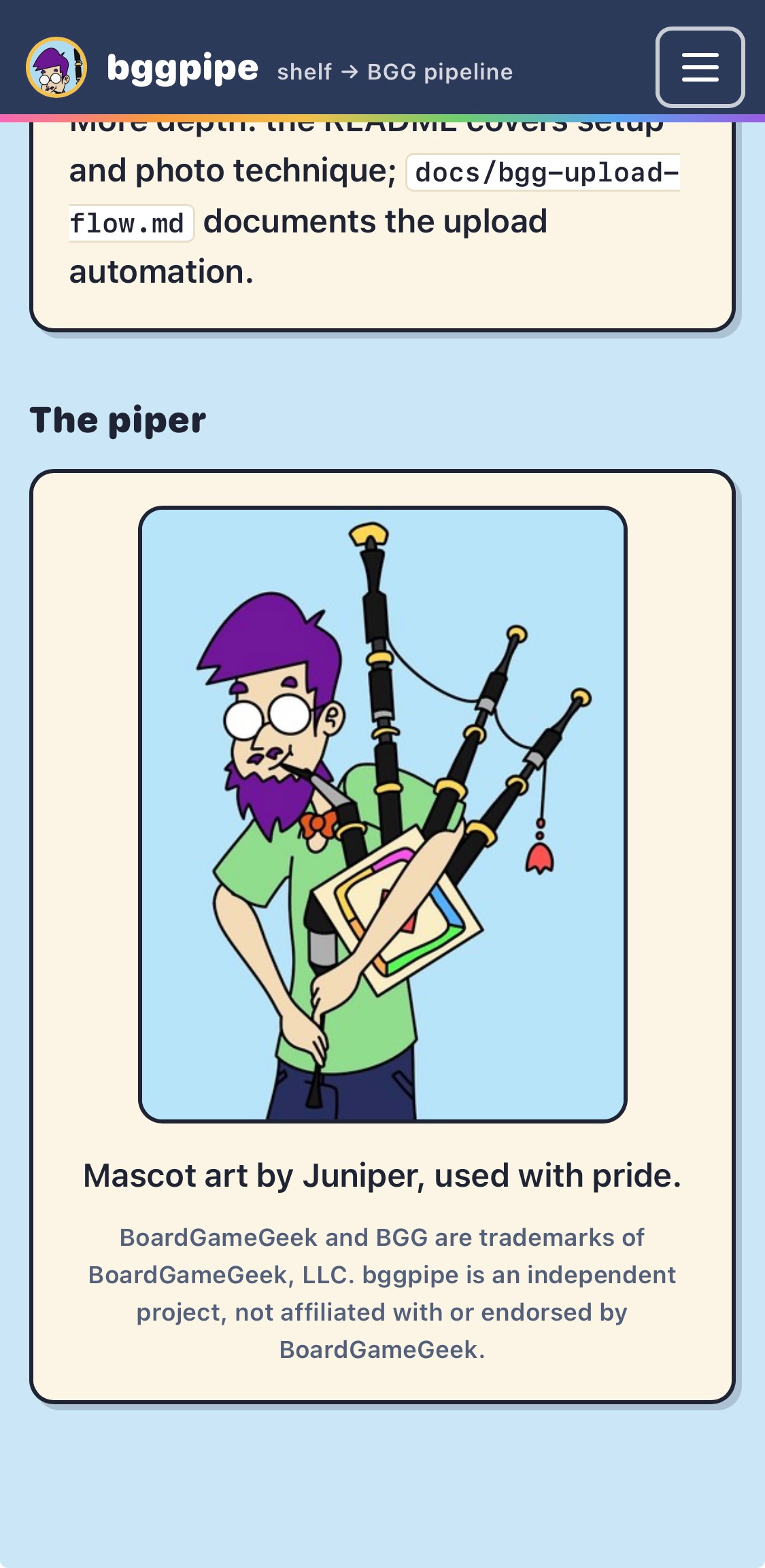

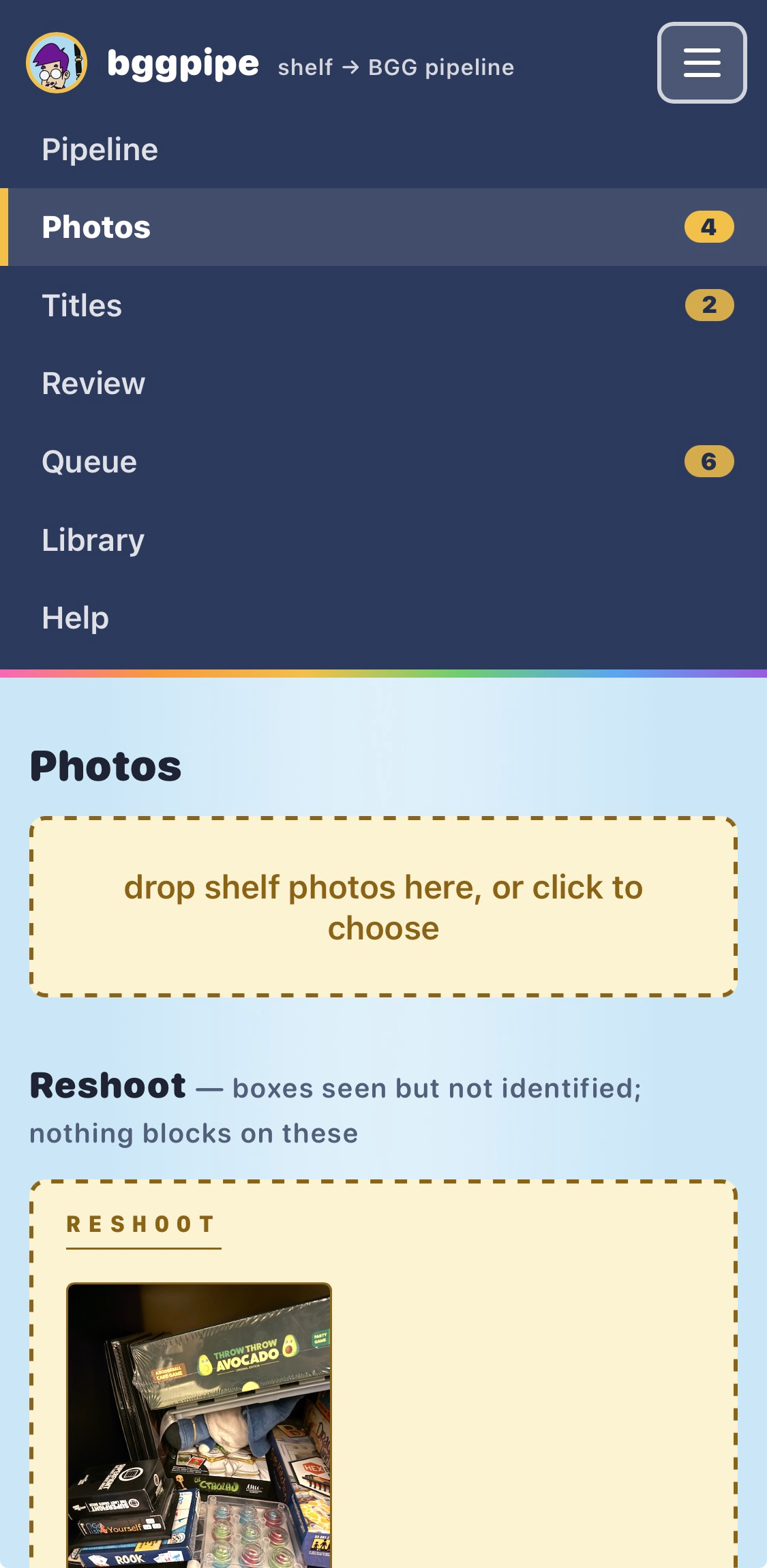

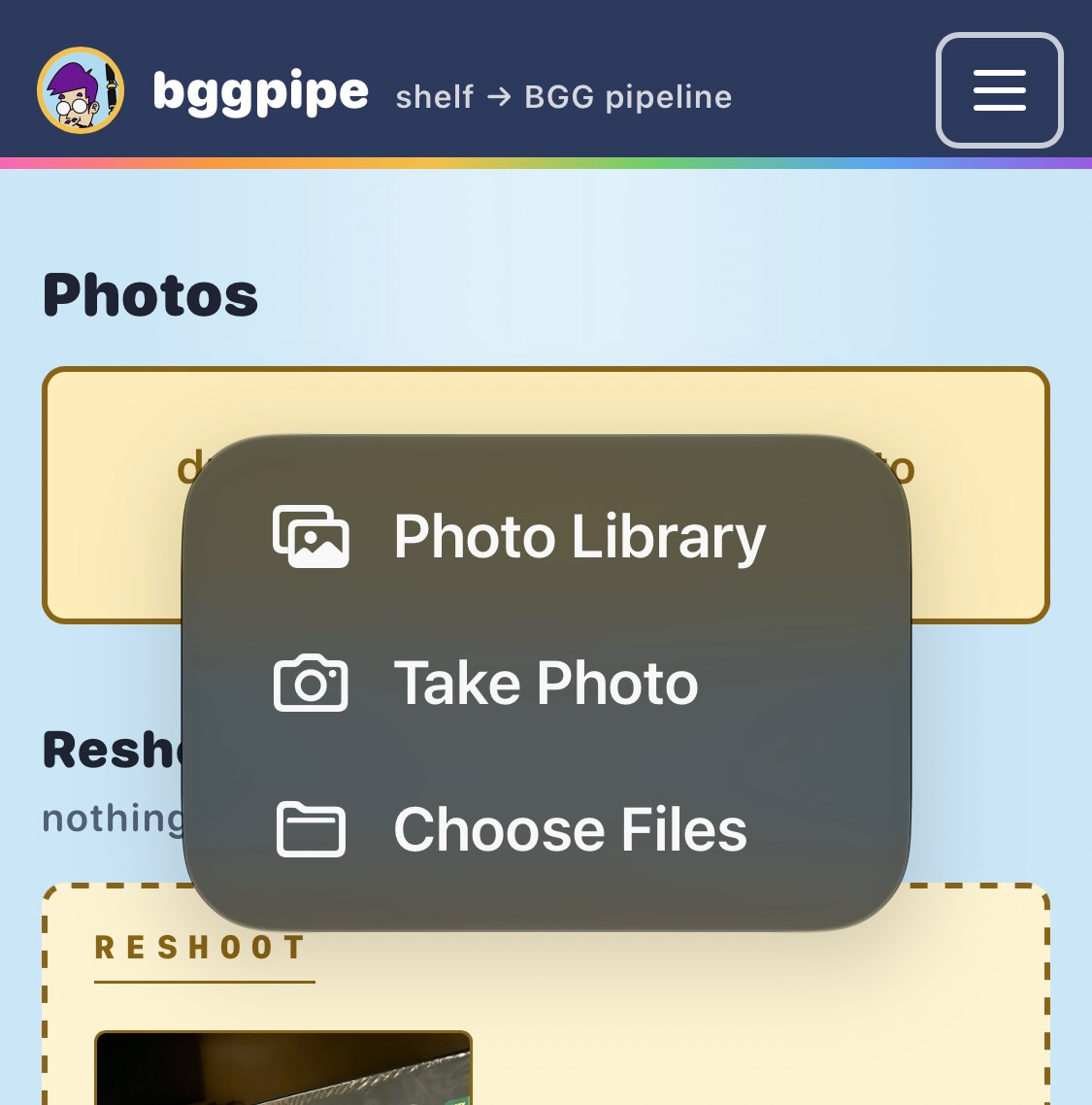

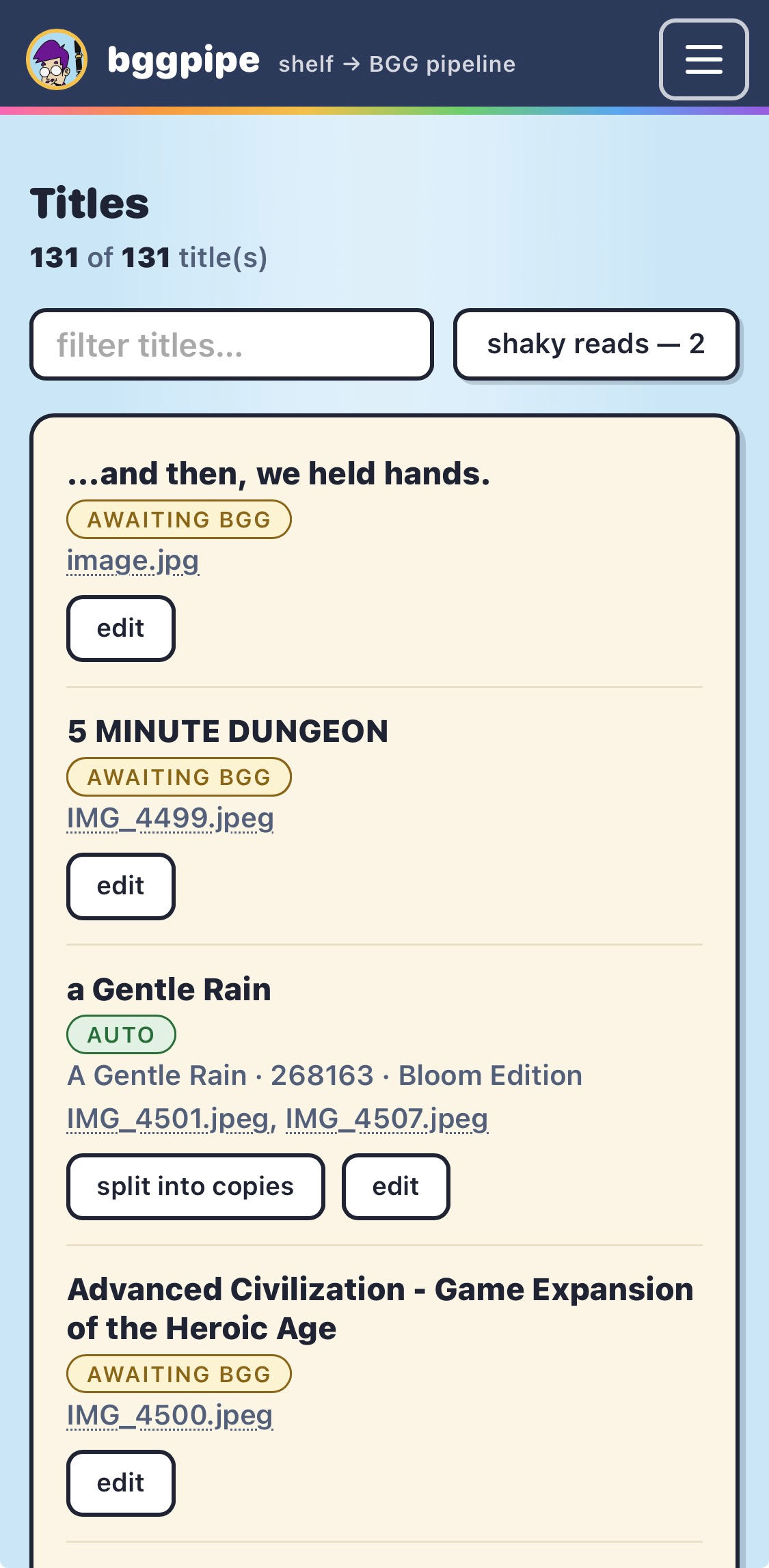

**And on a phone** (`--lan`) — the same app, paired once by QR code: the hamburger menu, shooting shelf photos straight into the pipeline from the camera, proofreading titles from the couch, and the piper on the Help page.

<p>
<img src="screenshots/08-phone-menu.jpeg" alt="Phone view: the hamburger menu open over the Photos page, showing all seven pages with attention badges" width="24%">
<img src="screenshots/09-phone-camera.jpeg" alt="Phone view: tapping the photo drop zone offers iOS's Photo Library / Take Photo / Choose Files sheet" width="24%">
<img src="screenshots/10-phone-titles.jpeg" alt="Phone view: the Titles page as stacked cards with status chips, edit and split buttons, and the shaky-reads filter" width="24%">
<img src="screenshots/11-phone-piper.jpeg" alt="Phone view: the Help page's credits card with Juniper's full piper artwork and the BGG trademark attribution" width="24%">
</p>
